Hard Spots: Looking Beyond Detection
In a nutshell:
Hard spots have become an increasingly important topic in pipeline integrity management. While the industry's understanding of hard spot occurrence and susceptibility continues to evolve, operators are also facing a more complex challenge: understanding which hard spots may become a threat and how to identify these before secondary threats like cracking are initiated.
Advances in in-line inspection technology are helping operators move beyond simple detection toward a more comprehensive assessment of hard spot susceptibility and associated failure risks. We spoke with Jason Edwards, Vice President Service Line Material Properties at ROSEN, about the interaction between hard spots and cracking, and why combining complementary inspection technologies can provide the most complete picture to enhance pipeline integrity.
What factors can indicate a pipeline's susceptibility to hard spots?
The starting point is determining whether hard spots are a credible issue for the pipeline. Not every pipeline may contain hard spots. Their occurrence is closely linked to specific manufacturing processes, pipe vintages, and historical steelmaking practices. Before considering inspection options, operators should evaluate the likelihood that hard spots exist within their asset population. Over the years, industry research, excavation findings, and ILI validation programs have significantly improved our understanding of where hard spots occur and what characteristics make a pipeline susceptible. For operators, the first question shouldn't be whether they need a hard spot inspection. The first question should be whether their pipeline system is susceptible to hard spots in general. Once knowledge about the potential presence of hard spots has been established, the focus can shift to identifying, characterizing, and assessing the hard spot population within the pipeline.
Hardness anomalies vs hard spots

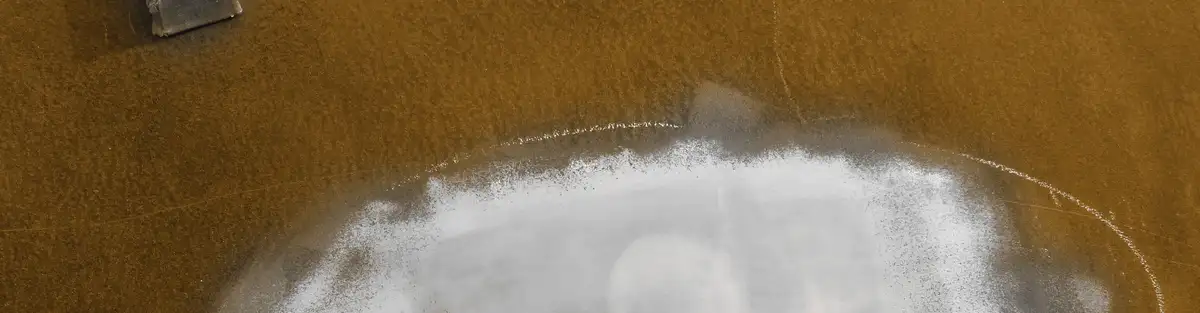

It is important to understand the distinction between hardness anomalies and a hard spot. A hardness anomaly is a localized area of elevated hardness. A hard spot is by definition a hardness anomaly with a specific dimension and hardness: >2” in any direction and >327 Brinell Hardness Number (BHN).
Are hardness anomalies a threat? And are they time dependent?
Hardness anomalies are generally not considered as an immediate integrity threat.
Hardness anomalies originate typically from the line pipe production and the welding and handling during the pipeline construction period. Many hardness anomalies have existed in operating pipelines for decades without causing any issues. The concern arises when conditions exist that allow for cracking mechanisms to occur. These conditions are stress, a susceptible microstructure (hardness anomaly with a certain hardness) and the presence of hydrogen.
In other words, hardness anomalies with a certain hardness (i.e. a hard spot), have an increased risk of cracking to occur and grow.
This distinction is important because cracking is time dependent. Once cracks begin to grow, failure can occur rapidly due to the non-linear growth behavior of cracks.
As a result, integrity management programs should focus not only on locating hardness anomalies, but also on identifying which hardness anomalies possess characteristics that make them susceptible to cracking.
A hard spot by itself is not a threat. The real concern is whether conditions exist that allow cracking to initiate and grow.
How can operators determine whether a hardness anomaly is likely to develop into a cracking threat?
There is no single factor that determines whether a hardness anomaly will crack. One of the most important indicators is hardness. Industry understanding has shown that hardness anomalies with hardness values exceeding 300 Brinell Hardness Number (BHN) are considered susceptible to cracking mechanisms. However, hardness alone is not the only contributor.
For cracking to occur, environmental factors must also be present. Hydrogen at the pipe surface is a critical component, which means coating condition can play a significant role in susceptibility for cracking.
A hardness anomaly with elevated hardness on its own may not represent a significant concern if the environmental conditions required for crack initiation are absent. Conversely, the combination of elevated hardness and conditions that promote hydrogen ingress can increase risk substantially.
Hardness is one of the most important indicators of a high susceptibility for cracking, but it must be considered alongside the environmental conditions acting on the pipe.
This is where combining inspection technologies becomes particularly valuable. Hard spot inspection can identify and characterize susceptible hardness anomalies, while EMAT inspection can determine whether cracking has already initiated and provide information on the coating condition at the location of the hardness anomaly.
In combination, these technologies help operators understand both current integrity conditions and future susceptibility.
What is the advantage of identifying susceptible hardness anomalies before cracking occurs?
The primary advantage is that it allows operators to act before a crack becomes an active integrity threat.
Hard spot assessment plays a crucial role in crack management. In-line inspection technologies such as EMAT can reliably detect cracks that have already formed, providing valuable information about active threats within a pipeline.
However, relying solely on crack detection means waiting until the crack has already been initiated.
Once cracking is present within a hardness anomaly, the time to failure can be significantly shorter than experienced in other scenarios due to the brittle nature of the hardness anomaly. In some circumstances, cracking can progress significantly between in-line inspection cycles.
Therefore the goal is to identify locations highly susceptible to cracking before these initiate.
This is why operators are increasingly interested in understanding and identifying hard spots. Such an approach allows integrity decisions to be made proactively rather than reactively.
What role does hardness anomaly surface location play in crack susceptibility?
Hardness anomalies can occur on either surface of the pipe and, in some cases, extend through the pipe wall thickness.
Understanding their surface location is important because it influences the environmental conditions acting on the feature and may affect the mechanisms that could lead to crack initiation.
Some hardness anomalies are associated with the outer surface, while others may be present on the inner surface. Through-wall hard spots introduce an additional level of complexity because they can be influenced by both internal and external operating environments.
For integrity engineers, knowing the surface location and whether or not the hardened region extends through-wall, can provide valuable context for threat assessment and mitigation planning. This is particularly important when we consider Hydrogen blends within natural gas lines and sour service lines where hydrogen is already present on the internal surface.
The more accurate an inspection technology can determine the surface location of a hardness anomaly, the greater the confidence in subsequent engineering assessments.
What are the most important performance indicators for in-line inspection technology for hardness anomaly detection?
While many performance metrics are important, two are particularly critical: Probability of Identification (POI) and hardness sizing.
The first challenge is ensuring that a hardness anomaly is correctly identified. Operators need confidence that detected features are genuine hard spots and no other material or geometric anomalies. A high POI reduces uncertainty and enables more effective integrity planning.
The second challenge is accurately estimating hardness. Since hardness is closely linked to crack initiation, a reliable hardness characterization is essential for determining which features warrant further evaluation.
This is where dual-field hard spot inspection technology offers a distinct advantage.
ROSEN's dual magnetization approach was specifically developed to improve hard spot detection, classification, and characterization. By leveraging complementary magnetic field responses, the technology delivers a highly reliable POI while also providing robust characterization of hard spot dimensions and hardness.
The technology is supported by extensive validation data generated from field investigations, controlled testing programs, and one of the industry's largest hard spot databases. This combination of detection capability and validated sizing performance enables operators to make integrity decisions with higher confidence.
Finding hardness anomalies is only the beginning. The real value comes from understanding how hard it is, the extent of the hardened region, and whether the right environmental conditions exist for cracking to occur.
Looking Ahead
As industry understanding continues to evolve, hard spot management is increasingly focused on cracking susceptibility rather than detection alone.
Operators need to know where hardness anomalies exist, which anomalies may be more susceptible to cracking, and whether cracking has already initiated. No single inspection technology answers all of these questions.
The combination of dual-field hard spot inspection and EMAT crack detection allows operators to move from reacting to cracking to proactively managing susceptibility.
When hardness anomaly characterization and crack detection are combined, operators gain a more complete understanding of pipeline condition, enabling integrity programs that are both more targeted and more effective.
