Pipeline Geometry Defects

What are pipeline geometry defects?

Geometry defects, also known as geometric defects, refer to deviations from the ideal circular shape of a pipeline that lead to pipeline deformation. These changes in geometry can occur during manufacturing, construction, or operation and compromise pipeline safety. Geometric defects in pipelines can generally be categorized into two groups: local features and global deformation. Local features include dents, dents combined with metal loss, wrinkles and ripples, roof topping, ovality, buckles, and scale and wax deposits. These imperfections typically occur in specific areas of the pipeline. Global deformation, on the other hand, refers to large-scale changes in the pipeline's shape, such as bending. This impacts the overall alignment and performance of the pipeline system.1

Illustration of a pipeline's geometry.
  • Pipeline segment with a buckle

    Buckles: Severe deformation often linked to soil movement.

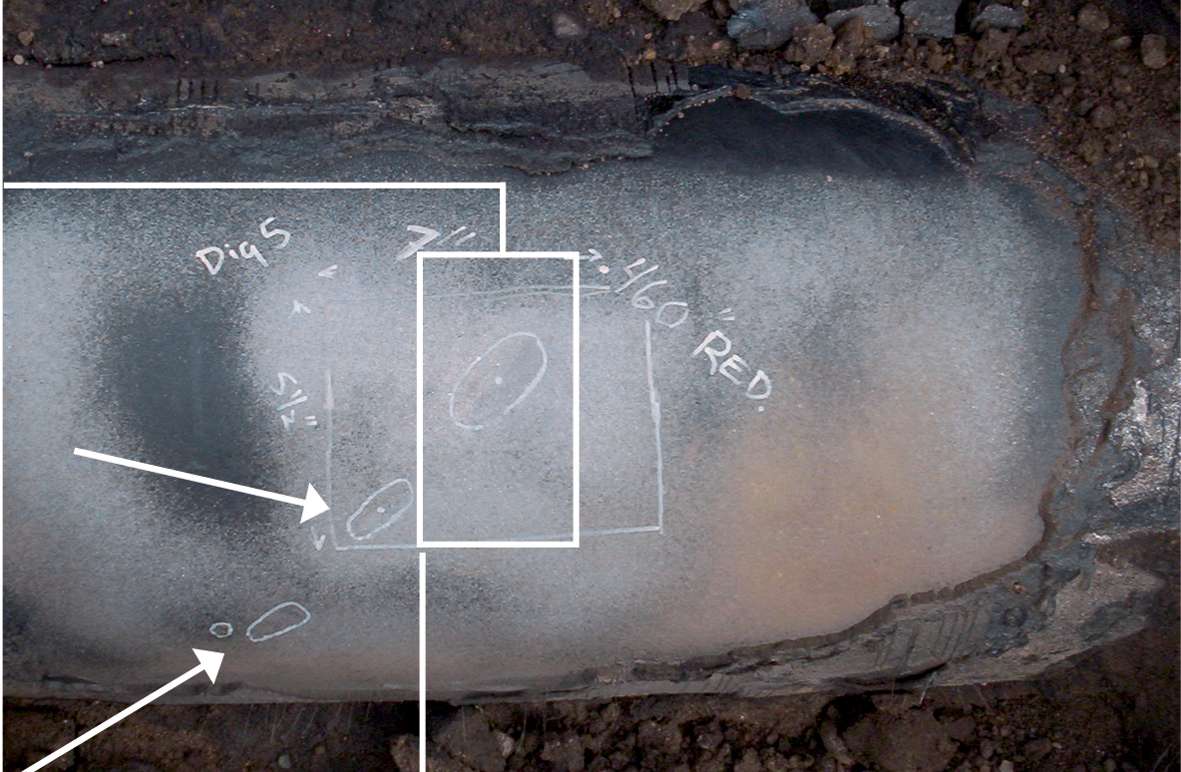

  • Picture of a dent with metal loss

    Dent with metal loss: Dents combined with corrosion or gouging.

  • Picture of a dent in a pipeline

    Dents: Depressions in the pipe wall.

  • Picture of a pipeline with an ovality anomaly.

    Ovality: Deviation from a perfect circular cross-section.

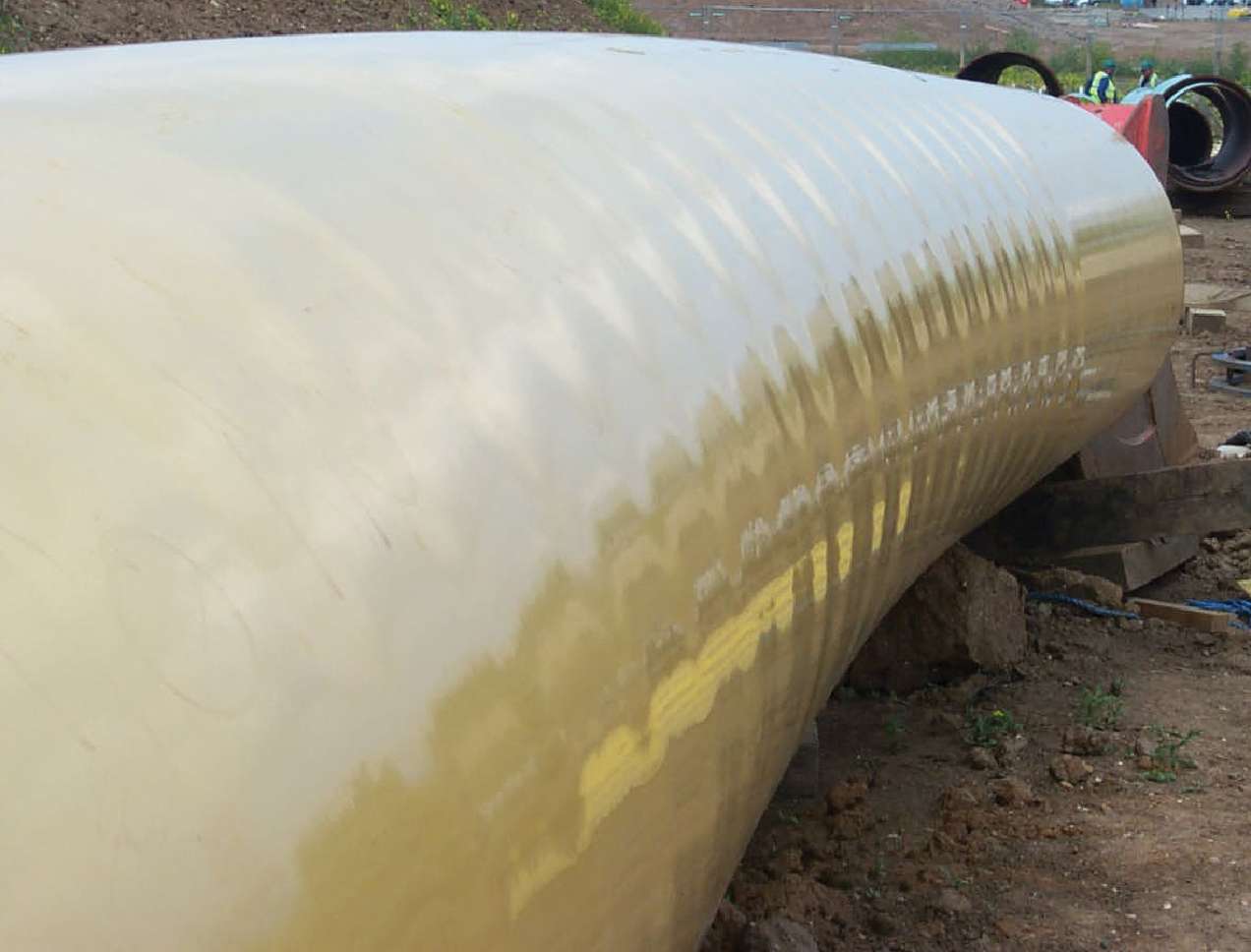

  • Picture of pipeline ripples.

    Ripples: Smaller wrinkles.

  • Illustration of how roof topping on a pipeline can look like.

    Roof topping: Flattening of the pipe crown.

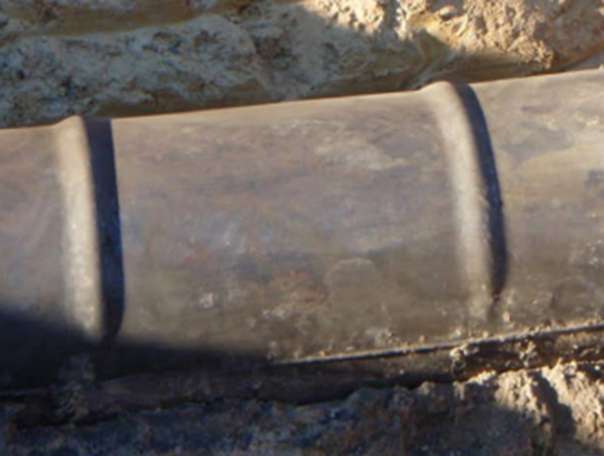

  • Picture of pipeline wrinkles.

    Wrinkles: Folds or undulations in the pipe wall.

How do geometry defects arise?

Geometry defects often result from:

  • External influences, such as geohazards (e.g., landslides, soil settlement, or earthquakes), or accidental third-party actions.
  • Operational factors, such as internal pressure fluctuations or thermal expansion.
  • Manufacturing or handling issues during pipe production or installation.

These factors can deform the pipeline, creating localized irregularities or overall bending.1

What are the risks of geometry defects in pipelines?

Pipeline geometry defects can lead to stress concentration (localized areas of high stress), crack initiation, and pigging difficulties because internal irregularities can obstruct inspection tools or cleaning devices. Furthermore, they reduce structural integrity because severe deformation may result in buckling or rupture under operational loads.1,2

Would you like to find out more about specific geometric defects, such as dents or wrinkles? Expand your knowledge by clicking through the 'Related Terms' section at the bottom of the page.

Check your knowledge about pipeline geometry defects

Explore more on this topic

Pipeline Deformation Service Page

Learn more about how pipeline deformation is detected and managed on our service page.

Explore pipeline deformation services

The Competence Club

Looking to build practical knowledge beyond the Encyclopedia? Join The Competence Club to access exclusive learning modules, expert insights, and technical guidance on pipeline safety, defect assessment and more.

Get to know The Competence Club

Source reference

  1. The Encyclopedia of Pipeline Defects, ROSEN UK, Edition 3, 2017.
  2. Introduction to In-Line Inspection - Defects and Loads, Beller & Reber, 2023.
