Pipeline Wrinkles

What are pipeline wrinkles?

Pipeline wrinkles are localized deformations of the pipe wall that resemble a waveform and are characterized by alternating inward and outward bulges. These deformations are considered a pipeline defect because they alter the geometry of the pipe and can compromise its structural integrity. Wrinkles are more pronounced than ripples, which are smaller undulations that are often introduced during bending processes.1

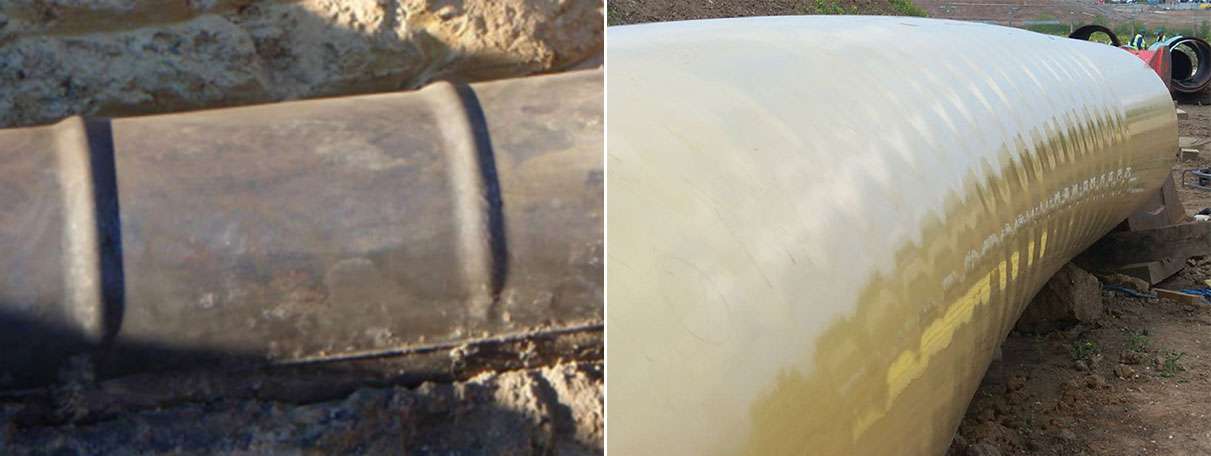

Picture collage showing pipeline wrinkles and pipeline ripples in comparison.

  • Ripples: Smaller undulations

  • Wrinkles: Folds or undulations in the pipe wall.

How do wrinkles occur?

Older methods allowed wrinkles to form at the inner bend radius. Even today, inadequate control during bending can create wrinkles or ripples. Excessive bending strain may also result from ground movement, such as landslides or settlement. Ripples are more common in pipelines with a high diameter-to-wall thickness ratio.1

Why are pipeline wrinkles a risk for pipeline safety?

Wrinkles create stress concentrations in the pipe wall that can:

•    Accelerate fatigue and crack initiation.
•    Reduce structural integrity, increasing the risk of leaks or rupture.
•    Cause operational challenges, such as difficulty with pigging during inspections or cleaning.1

Explore more on this topic

Pipeline Deformation Management

Learn more about how pipeline deformation is detected and managed on our service page:

Explore pipeline deformation management

The Competence Club

Looking to build practical knowledge beyond the Encyclopedia? Join The Competence Club to access exclusive learning modules, expert insights, and technical guidance on pipeline safety, defect assessment, and more.

Get to know The Competence Club

Source reference

1 The Competence Club, ROSEN, 2025.
